Double-shaft shredder DS1400A/B

Item Code:DS1400A/B Features:film shredder, Double-shaft shredder,tire shredder,Twin shaft shredder, two shaft shredder,Strong shredder,Plastic shredder,Plastic recycling shredder,waste garbage shredder, Plastic pallets shredder,Plastc pipes shredder, Plastic container shredder,Wood shredder,twin shaft shredder, double-shaft shredder, plastic shredder, double rotor shredder, film shredder, tire shredder, tyre shredder, tyre cutter, can shredder, wood shredder
  • Description

What we can do with double shaft shredder





1. Why to use double shaft shredder



a.The can shredder are new designed especially for crushing the film in rolls, tires of cars and medium-sized automobiles, hollow barrels and so on.



b.The shredders have the characteristics of strong crushing ability and contrarotation with the structure of close-lined rotary knives in double direction.







c.With Simense PLC control system.



2. Features of  double shaft shredder



 1.To check the oil level of the gear box is normal or not.



2.Turn the manual/automatic switch to automatic catches, press the automatic start and stop switch for one time.



3.Running the machine without material for 3 minutes to check the motors and gear boxes.



4.Put material into this machine to start working.



5.To stop the twin- screw crusher after the material in the chamber are crushed completely .



3.Catalog of double shaft shredder

4. When we produce double shaft shredder



Modle

600A/B

800A/B

1000A/B

1200A/B

1400A/B

1600A/B

Motor

power(kw)

11-6

Or 15-4

22 or 30

37 or 45

55-6

45-6×2

55-6×2

Rotating speed(rpm)

50

50

20

20

30

30

Rotary diameter(mm)(single)

300

320

400

450

500

520

Knife material

 special tool steel

 special tool steel

 special tool steel

 special tool steel

 special tool steel

 special tool steel

Knife thickness(mm)

50

50

50

70

70

70

Knives quantity

12 rotary

12 fixed

16 rotary

16 fixed

20 rotary

20 fixed

17 rotary

17 fixed

20 rotary

20 fixed

22 rotary

22fixed

Output(kg/h)

600-800

800-1000

1200-1500

1600-2000

2000-2500

3000-4000

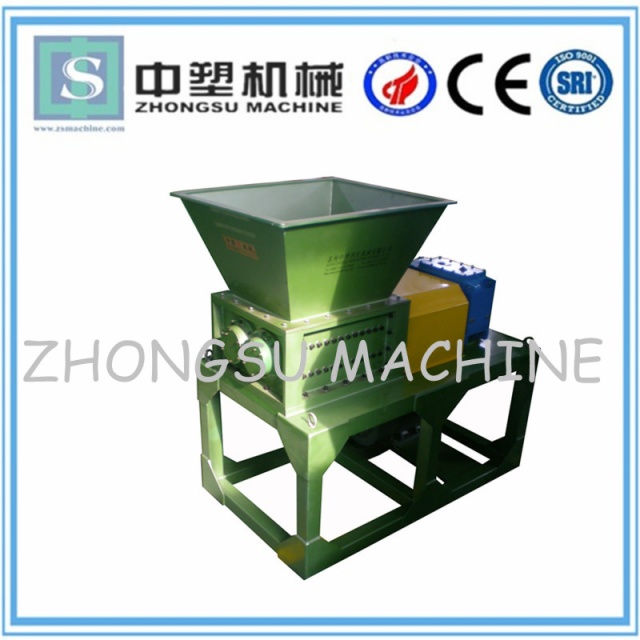

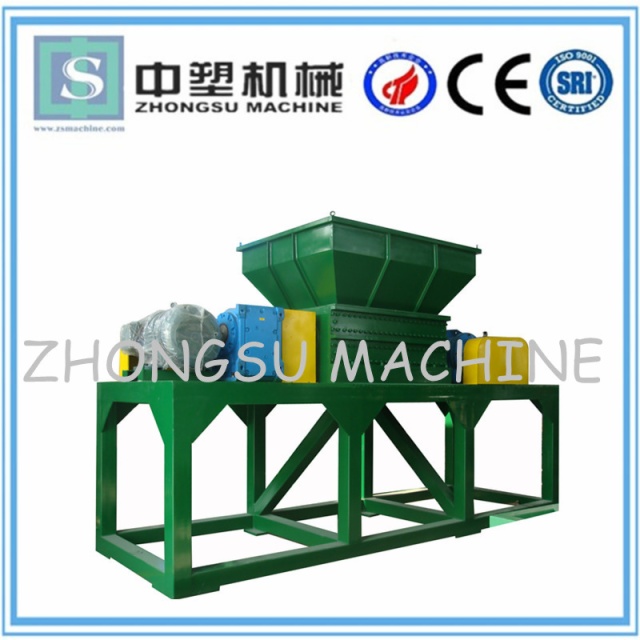

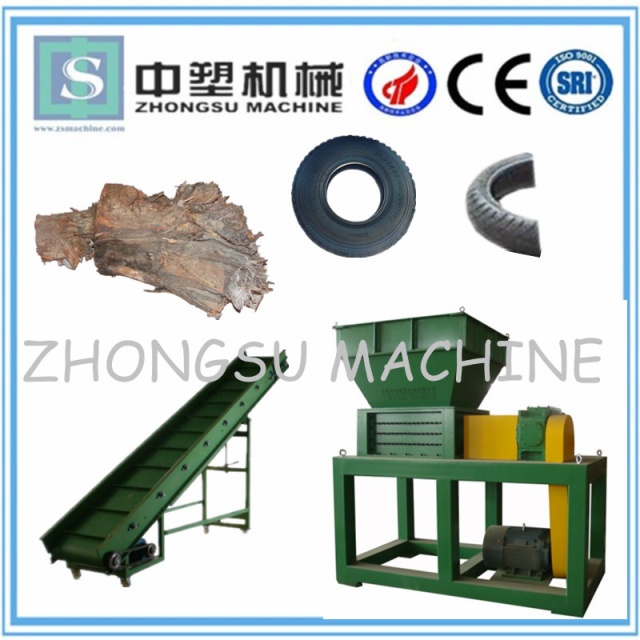

5. Pictures of double shaft shredder

6Details of double shaft shredder



7. Certificate  Of  double shaft shredder

CE

8. Loading Time





9. Where we produce double shaft shredder
