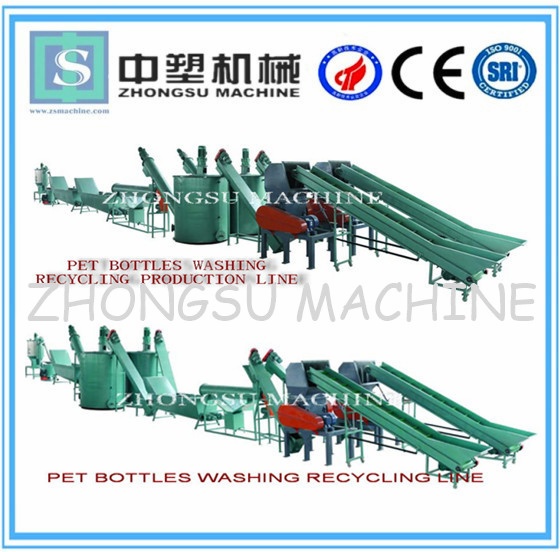

PET bottles washing recycling line ZS500, ZS1000,ZS1500,ZS2000,ZS2500,ZS3000

Item Code:ZS500, ZS1000,ZS1500,ZS2000,ZS2500,ZS3000 Features:Our PET Washing Plants are high throughput, high performance recycling systems designed especially for post customer PET bottles with caps and labels from various sources. We offer different washing recycling system to our customers from different areas according to their individual requirements. The fianl purpose is to get the high purity ,low moisture ,uniformed clean PET flakes. The whole system inclued the procedures: debaler, pre-washer, label remover, sorting, granulating, washing dewatering, second granulation for size reduction drying ect.
  • Description



What can we do with PET bottle washing line:

PET

PET scrap bottle washing line introduction:

This PET bottle washing and drying machine/PET sheet and drying line is a ideal PET washing line.


This unit is mainly for PET (bottle) flakes: the labels and bottle caps are automatically separated, then after being washed, dewatered and dried, the water content will be very low, and PP/PE film after being washed can be directly granulated (water-ring palletizing), the gained granules are even and smooth with shiny surface. So, it is an ideal equipment in waste plastic recycling industry, with leading technology in the world.

We professionally manufacture plastic machinery and waste plastic washing production lines, such as PET (bottle) flakes washing lines, PP/PE waste plastic film washing and granulating/palletizing production lines, pipes and shape pipes production lines, and various auxiliary machines.

Our products are more reasonable in design, more excellent in processing and more durable in usage.

To separate PET bottles to flakes from PE/ PP label, cap, oil, garbage, protect the environment, avoid white pollution.

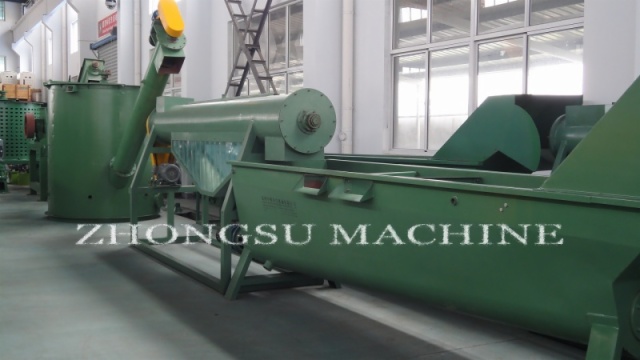

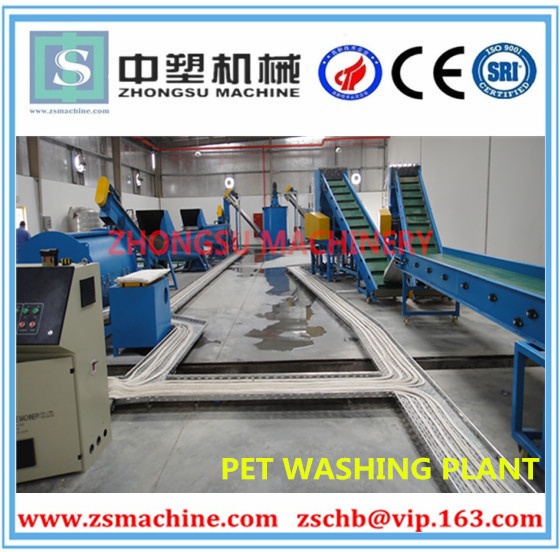

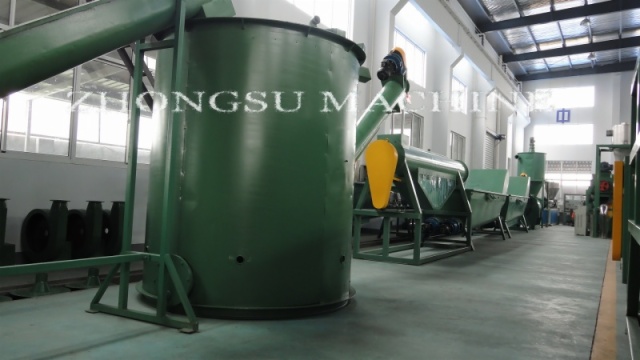

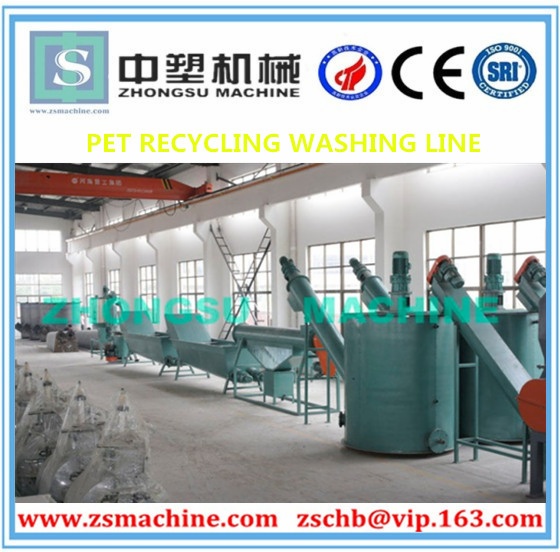

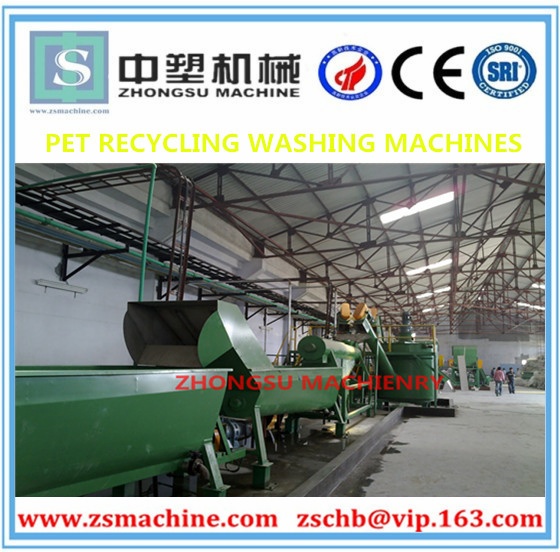

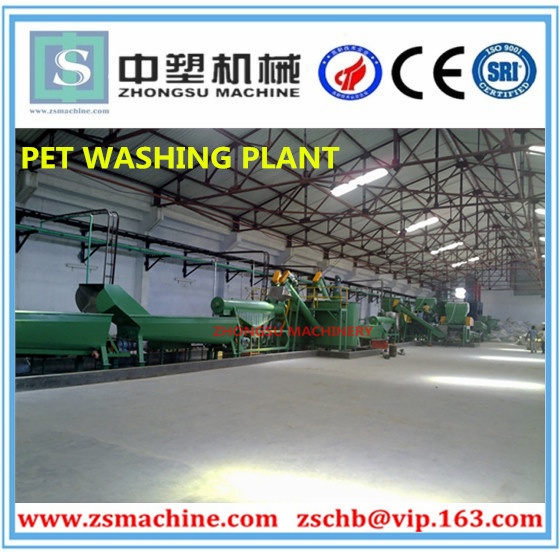

This recycling line is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.

This PET bottle flakes crushing, recycling and washing production line can easily wash and recycle waste PET bottle flakes. Waste and dirty PET bottle flakes can be treated step by step by this facility. It is special for washing PET bottles flakes. We can help to attach equipment at the end of the washing line so that the completely dry flakes can be collected and packed directly after being washed.

  The whole production line can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products.

  Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PET bottles to be the PET granule material and in order to producing new PET bottles.

  After the this PET bottle flakes crushing, recycling and washing production line, our company also offer the following production lines of PET bottle granulating to make the waste and dirty PET bottle be the new finished products.



The content of PET bottle washing line



The whole equipment includes parts:

NO

ITEM

DESCRIPTION

SELECTIVITY

1

Pre-washer

Remove the solid impurity which are water insoluble, such as hand stone, sand, etc. It can also wash bottles' surface.

Optional

2

Bale Breaker

It is used in large capacity recycling line, and bottles are compressed in bale.

Optional

3

Belt Conveyor

Including the metal detector.

Necessary

4

Label Remover

Label removing efficiency, more than 98%

Optional

5

Manual Select Platform

Made according to workers' height, supply a suitable plate for selecting the left labels or some other impurity.

Optional

6

Belt Conveyor

Conveying the bottles into crusher.

Necessary

7

Crusher

With water, the materials of the blade adopt SKD-II or 9CrSi. It has a function of prewashing too.

Necessary

8

Screw Feeder

Conveying the flakes into friction washer.

Optional

9

Friction Washer

Scrubbing material in high-speed with water.

Optional

10

Screw Floating Washer

Remove few remand paper, sand, label from material based on different density.

Optional

11

Screw Feeder

Conveying the flakes into hot washer.

Necessary

12

Hot Washer

High temperature stirring washing with caustic soda. Water can be heated by steam or electric.

Necessary

13

Screw Feeder

Same as Item 8.

Necessary

14

Friction Washer

Same as Item 9.

Necessary

15

Screw Floating Washer

Same as Item 10.

Necessary

16

Dewatering Machine

High speed centrifuge drying.

Necessary

17

Drying System

Electric heating wind drying.

Necessary

18

Label Wind Separator

The last left impurity will be separated from flakes by the blower fan.

Optional

19

 Silo

Store the final material.

Necessary

20

Electrical Control Panel

Adopts Siemens and DELIXI as main component.

Necessary



Catalog of PP/PE Plastic washing line:

PET

Certificate of PP/PE Plastic washing line:

CE



Other Products

Product Name:
Trommel screen in PET washing line
Model:
ZS1400 , ZS2000
Description:
This trommel machine is used for separate heavy stones, caps, sand or other small contamination down from these bottles go through it.
Product Name:
PET bottles washing line
Model:
ZS500-600
Description:
This line includes bale-opening, label-removing, crushing, washing and drying for the PET bottles/flakes, PVC, ABS and other plastics. İt is the basic process of plastic recycling project.
Product Name:
PET bottle Pre-washer, Pre washing machine
Model:
ZS
Description:
This machine has a big volume should work with hot water with high temperature. It mainly used for pre-washing the bottles before crushing and removes some contamination out. ( PVC bottles after go through the hot water may change color and could be sorted out further.)
Product Name:
Label remover machine in PET washingline
Model:
ZS
Description:
The label remover machine /label remover is the key products in PET recycling plant. It's used for removing most percentage labels on the bottle body before crushing. This machine also have the function of pre-washing as well.
Product Name:
PET bottle granulator
Model:
PET bottle granulator
Description:
This machine line is the most important machine in the PET bottle recycling line. Features as follows: 1. High capacity and performance 2. easy operating 3. Mass production which could delivery in short time 4. Rotor and blade special design 5. Crushing with water
Product Name:
Bale opener / Bale breaker in PET washing recycling line
Model:
Vertical type, Horizontal types
Description:
The bale opener/ bale breaker is key products in PET recycling plant. It's mainly used for opening the tight bales of PET bottles to loose bottles one by one for further processing and sorting in the next procedures of one PET washing line
Product Name:
PET flakes friction washer
Model:
ZS
Description:
Use: Through high speed rotating of main axes, separating material, flush at top, deposit dirty and sand from screen, in the same wash material scraps. High speed processing High efficiency friction washing High output capacity Spray washing to wash the dirty down
